Panel-Thickness Evaluation System

The system was developed due to the pressed panel industry’s need to “effectively evaluate the actually created panel’s thickness.”

T-Promotion is a system that can evaluate the rate of change in panel-thickness against the nominal thickness dimension by using polygon mesh data (non-contact measurement data) of the front side and the back side of a pressed panel.

Useful to detect a decrease in panel-thickness and identifying a plastic deformation neck.

T-Promotion 6.0 Update Information (Oct. 24, 2025)

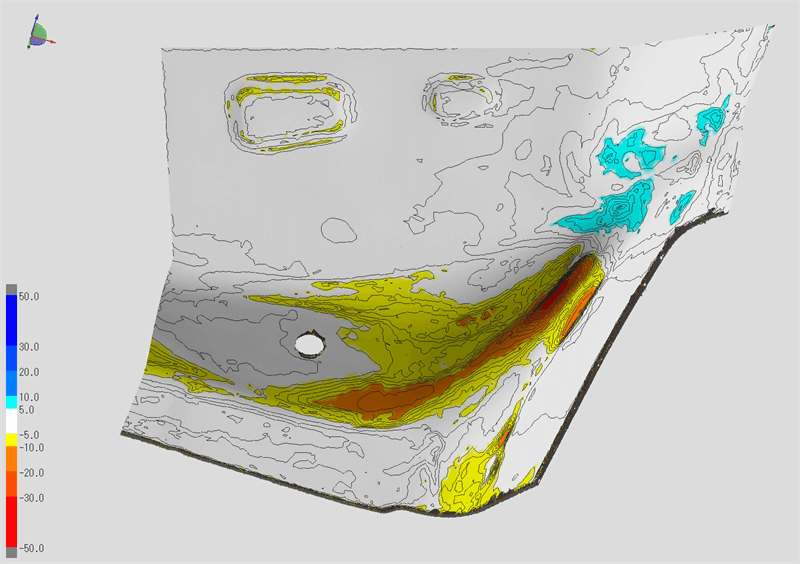

A Panel Thickness Contour Line Display function has been added. You can now display contour lines on the color map of panel thickness variation rates. Areas where the contour lines are close together indicate regions with a rapid change in panel thickness, making it easier to identify such variations at a glance.

Try out the latest version today!

Example of Panel Thickness Color Map Display

[Video] Evaluation Example of Tailor-Welded Blanks (Different panel thicknesses)Even for blanks with varying sheet thicknesses, you can easily check the panel thickness variation rate within a single view!
